NestaFlex 200 | FMH 24ft x 24in Gravity Roller Conveyor

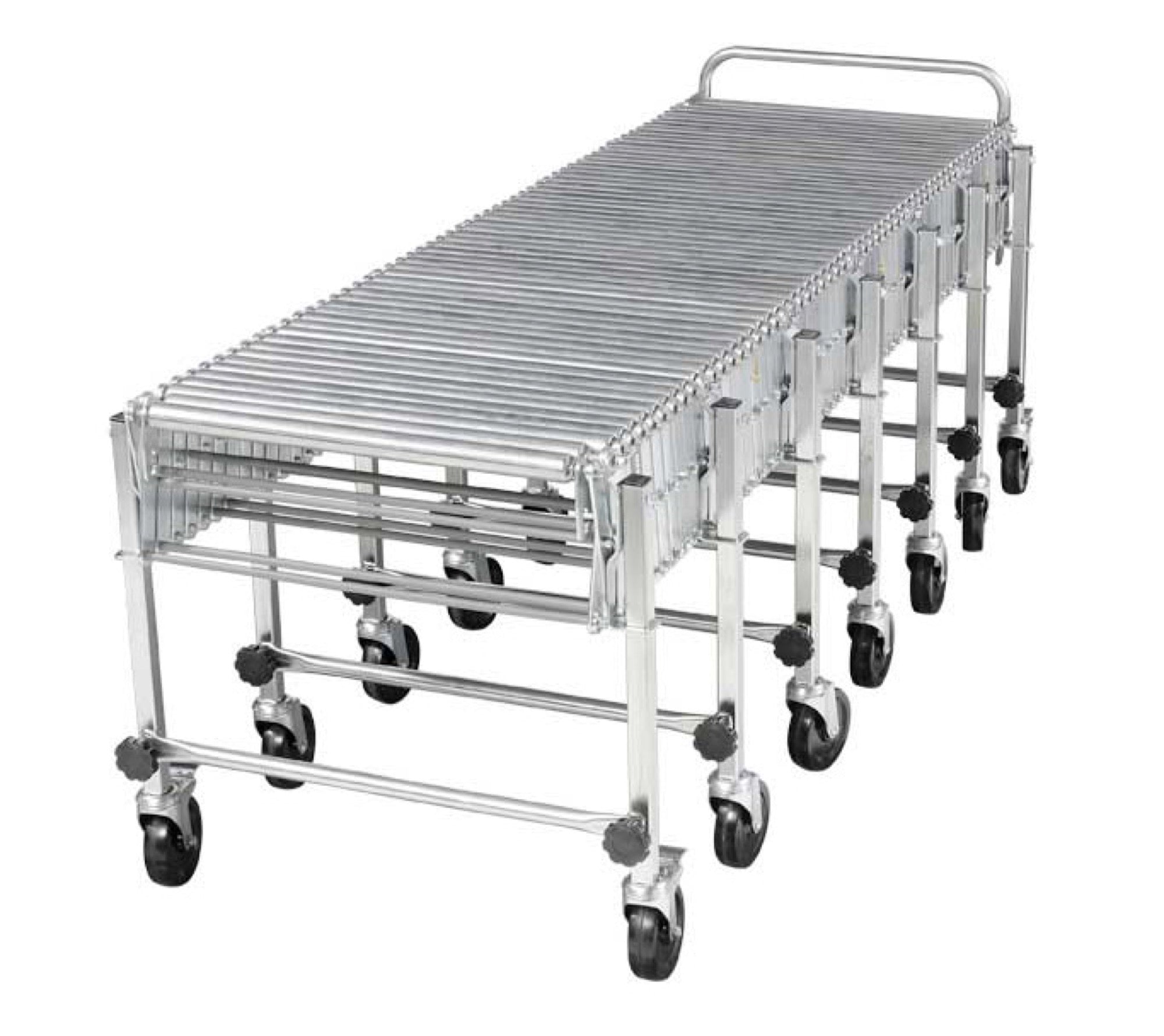

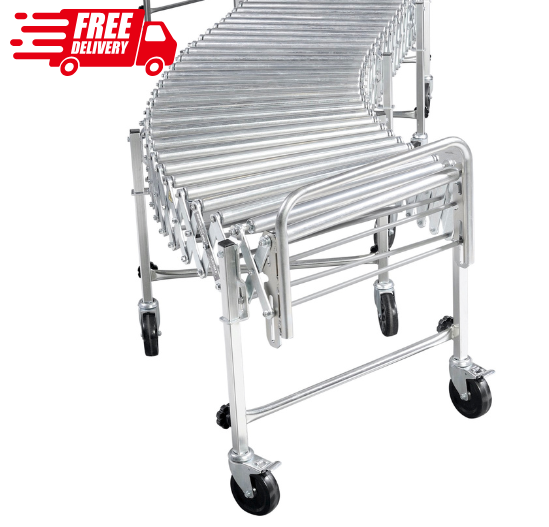

The FMH RLS24024S gravity conveyor is a portable, expandable roller conveyor designed for moving irregular or non-flat-bottom products. Its flexible design allows the conveyor to expand to reach work areas and curve around obstacles, making it well suited for shipping, receiving, and staging applications. When not in use, the conveyor contracts to a compact length for easy storage.

📐 Technical Specifications

• Expanded Length: 24' 8"
• Compacted Length: 6' 7"
• Conveyor Width: 24"
• Adjustable Conveyor Height: 28" to 44" (handknob adjustment)
• Axle Centers: 5-1/4" when fully extended
• Swivel Casters: 5" diameter with brakes on infeed & discharge
• Manufacturer: FMH Conveyors

📦 What's Included

• (1) NestaFlex 200 Gravity Roller Conveyor – Model RLS24024S

• 🚚 Dock-to-Dock freight delivery (continental U.S. only / lower 48)

📋 Application Notes

• Designed for flat floor applications and general material handling.
• Recommended for odd-shaped products and items without a flat bottom.
• Expandable and flexible to adapt to changing layouts.
• Portable construction allows easy repositioning between work areas.
• Compacts for storage when not in use.
• If you require the skate wheel version, please consider the NestaFlex 226

📧 For support, or configuration questions please contact us here.
