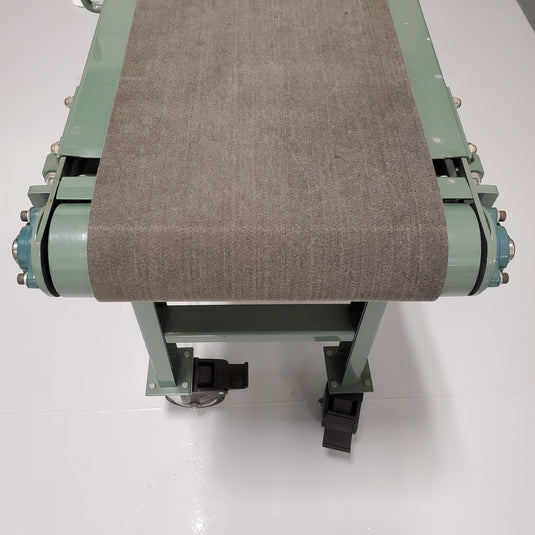

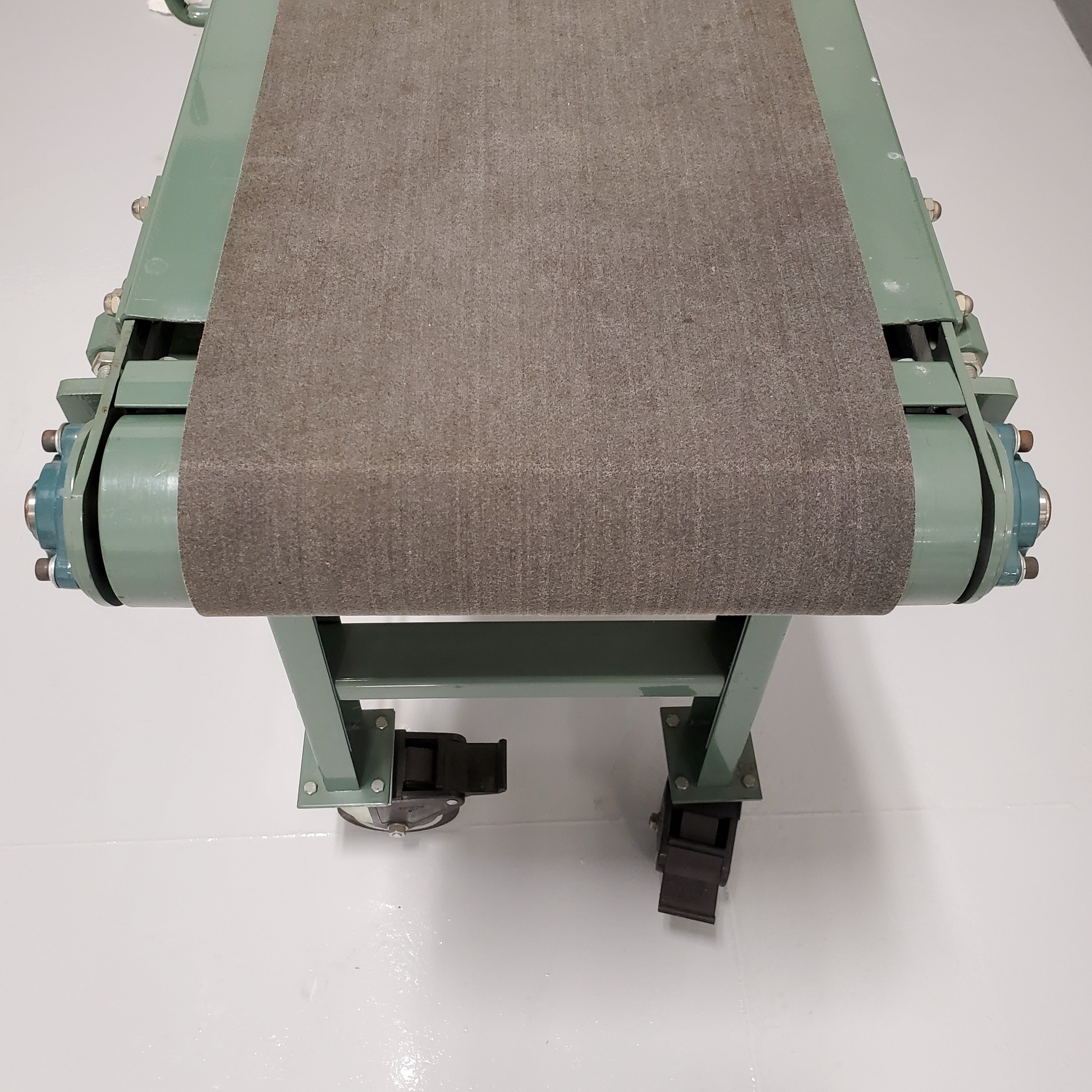

B-22221-015 | Hytrol 15" Overall Width Tail Pulley

The Hytrol B-22221-015 Tail Pulley is an OEM crowned pulley designed for the non-driven end of Hytrol TA belt-over-slider-bed conveyors with a 15-inch overall conveyor width (OAW). Its 4" diameter crowned profile promotes proper belt tracking, stable tension, and smooth return-side performance. Built to Hytrol specifications, this pulley serves as a direct-fit replacement commonly used on the TA model.

📐 Technical Specifications

• Part Number: B-22221-015
• Pulley Diameter: 4"
• Overall Conveyor Width (OAW): 15"
• Pulley Face Length: 13-7/8"
• Overall Pulley Length (including shaft ends): 18"
• Shaft Diameter: 1" solid shaft
• Pulley Type: Crowned face
• Installation: Secured using 3-bolt flange bearings mounted to the conveyor frame

📦 What’s Included

• One (1) B-22221-015 Tail Pulley

💡 Recommended: Replace bearings when installing a new pulley. Compatible bearing: 010.102 3-Bolt Flange Bearing.
