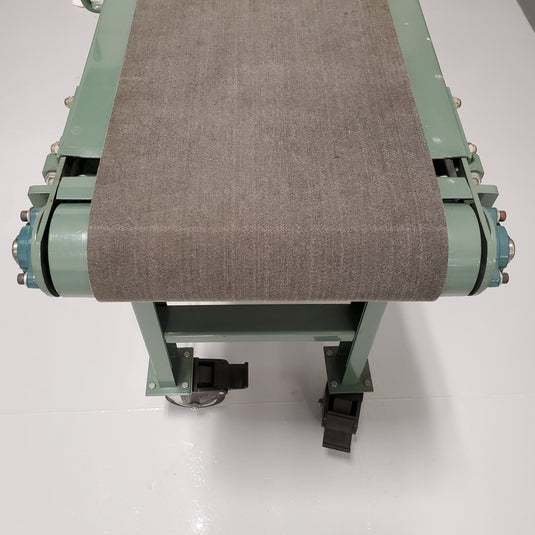

B-22221-010 | Hytrol 10" Overall Width Tail Pulley

This 4" diameter crowned tail pulley fits the non-driven end of Hytrol TA model conveyors (belt over slider bed style) with a 10" overall conveyor width (OAW). It supports belt tracking and tension on the return side of the conveyor.

Commonly used on Hytrol’s top-selling TA model.

• Pulley Diameter: 4"
• Overall Conveyor Width (OAW): 10"
• Pulley Type: Crowned face

📐 Technical Specifications

• Pulley Face Length: 8-7/8"
• Overall Pulley Length (including shaft ends): 13"
• Shaft Style: Solid 1" diameter
• Installation: Secured using 3-bolt flange bearings mounted to the conveyor frame

Recommended: Replace bearings when installing a new pulley. You can add the 010.102 bearings to your cart here.
