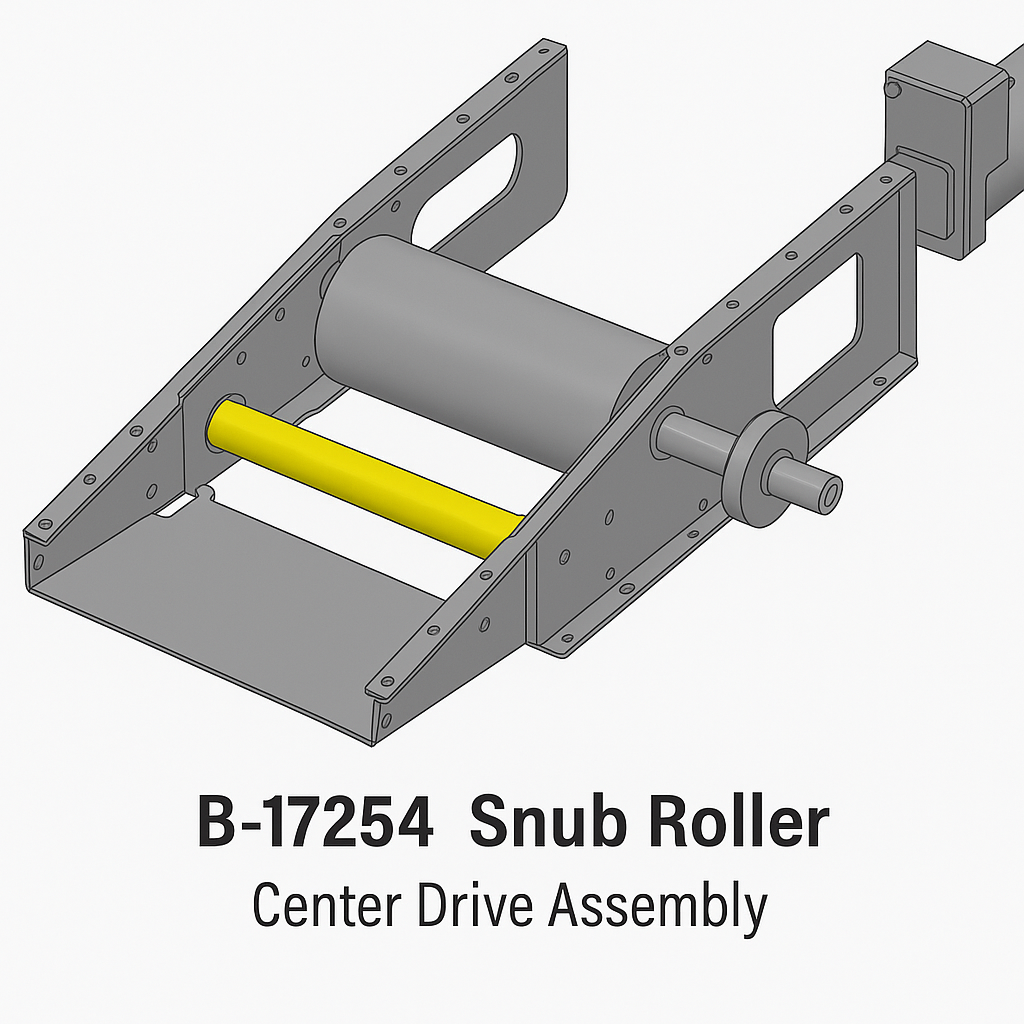

B-17254-312 | Hytrol 39" BR Snub Roller for 8" Center Drive

This 2-1/2" diameter snub roller is designed for use in belt conveyor systems to maintain proper tension and alignment of the conveyor belt. It features a fixed solid hex shaft and BCA bearings for smooth rotation and long-lasting performance.

Designed for use in Hytrol conveyors with an 8" center drive assembly.

📐 Technical Specifications
• Roller Diameter: 2-1/2"
• Between Rail (BR): 39"
• Roller Face Length: 37.750"
• Overall Shaft Length: 41.688"
• Shaft Style: Solid 11/16" hex shaft
• Shaft Extension: 1-5/32" from roller face to end (each side)

🧰 Compatible Bracket:
The snub roller is commonly held in place with this 7/16" hex idler bracket — view part B-04842.
