B-09179-B | Hytrol .5HP to 1HP Coupling Kit

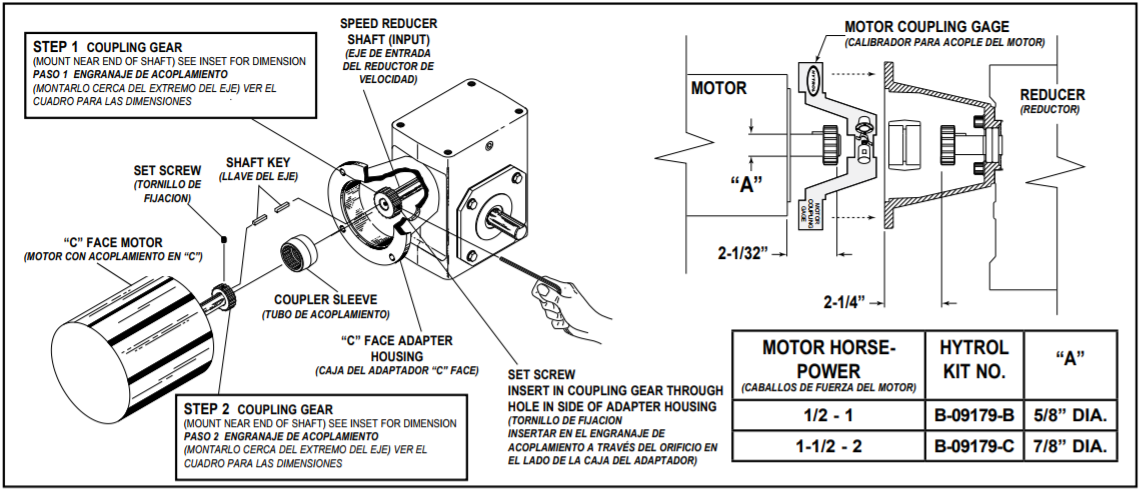

The Hytrol B-09179-B coupling kit is a flexible C-face coupling designed for 1/2HP to 1HP motors. It includes the coupler sleeve, set screws, and coupling gears, making it the most popular motor-to-reducer coupling kit for this horsepower range. This kit replaces the now obsolete 052.145 part number.

📐 Technical Specifications

• Bore Sizes: 5/8" to 3/4"
• Coupling Type: Flexible C-face coupling
• Motor Range: 1/2HP to 1HP

📦 What's Included

• Coupler sleeve
• Set screws
• Coupling gears
